Description

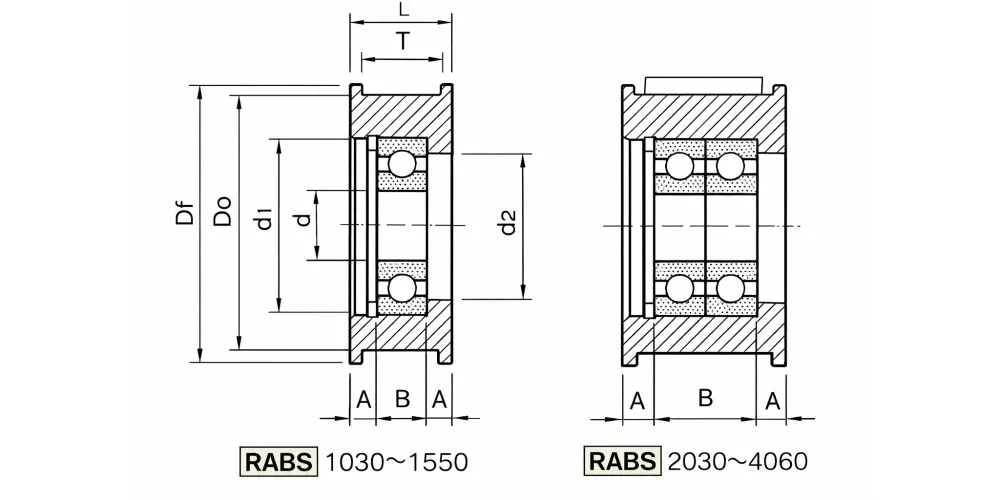

1. Technical Specifications Matrix (RABS Series)
| Part Number | Flange Height | D0 | Df | T | d | B | L | d1 | d2 | A | Bearing | Weight | Proper idler pin |
| RABS1030 | 1.5 | 30 | 33 | 11 | 8 | 7 | 14 | 22 | 18 | 3.5 | 608ZZ | 55 | PID0807 |
| RABS1040 | 40 | 43 | 10 | 8 | 15 | 26 | 22 | 6000ZZ | 115 | PID1008 | |||
| RABS1530 | 1.5 | 30 | 33 | 16 | 8 | 7 | 19 | 22 | 18 | 6 | 608ZZ | 70 | PID0807 |
| RABS1540 | 40 | 43 | 10 | 8 | 20 | 26 | 22 | 6000ZZ | 150 | PID1008 | |||
| RABS1550 | 3 | 50 | 56 | 270 | |||||||||
| RABS2030 | 1.5 | 30 | 33 | 21 | 8 | 14 | 24 | 22 | 18 | 5 | 608ZZX2 | 95 | RLB0814 |
| RABS2040 | 40 | 43 | 10 | 16 | 25 | 26 | 22 | 4.5 | 6000ZZX2 | 200 | PID1016 | ||
| RABS2050 | 3 | 50 | 56 | 22 | 340 | ||||||||
| RABS2540 | 1.5 | 40 | 43 | 26 | 10 | 16 | 30 | 26 | 22 | 7 | 6000ZZX2 | 225 | PID1016 |
| RABS2550 | 3 | 50 | 56 | 400 | |||||||||
| RABS4060 | 3 | 60 | 66 | 41 | 12 | 20 | 45 | 32 | 26 | 12.5 | 6201ZZX2 | 840 |
2. Five Key Facts at a Glance
- ✔ Superior Lateral Stability: The flanged design prevents lateral belt migration, reducing wear on costly drive belts.
- ✔ Precision Bearing Integration: Equipped with 6000-series deep-groove ball bearings for ultra-smooth rotation and heat dissipation.
- ✔ Colombia-Ready Compliance: Fully meets the safety and durability requirements for the Colombian mining (coal/gold) and agricultural (sugar/coffee) sectors.
- ✔ Extensive Model Range: Available in bore sizes from 10mm to 40mm, supporting diverse industrial torque requirements.
- ✔ Heavy-Duty Material Build: Manufactured from cold-rolled steel (SPCC/SPHC) with anti-corrosive surface treatment for harsh tropical climates.

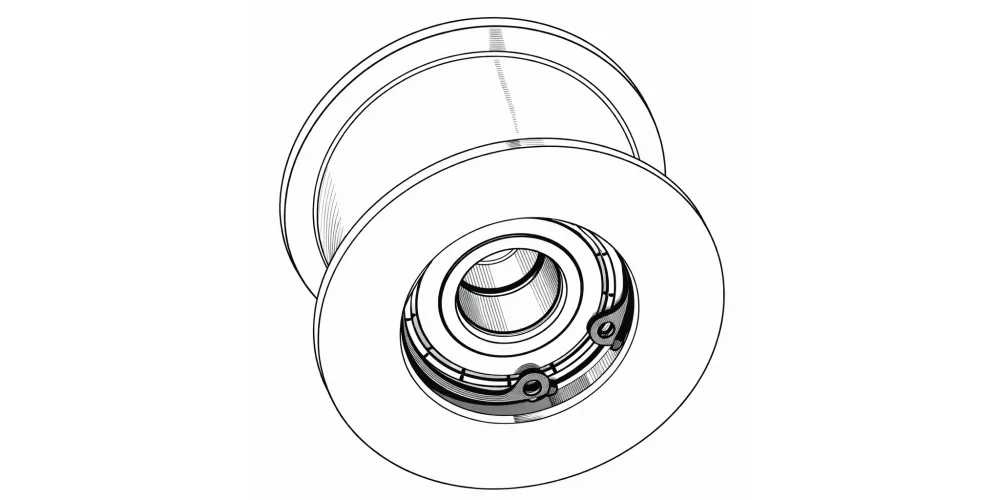

3. Comprehensive Overview: The Engineering Excellence of EP- Flanged Idler Pulley RABS Series
The industrial landscape of Colombia, characterized by its demanding mining operations in the Cesar and La Guajira departments and extensive agricultural processing in the Valle del Cauca, requires transmission components that can withstand extreme stress and environmental humidity. The **EP- Flanged Idler Pulley RABS series** is meticulously designed to meet these challenges, serving as a critical component in heavy-duty conveyor systems, material handling equipment, and specialized agricultural machinery. Unlike standard pulleys, the RABS series features a reinforced flanged profile that provides essential lateral guidance for the belt, significantly reducing the risk of downtime caused by belt derailment. This series is engineered to provide a low-friction interface, which minimizes energy consumption and heat buildup, factors that are crucial for continuous 24/7 industrial operations. By utilizing high-purity carbon steel and advanced metallurgy, we ensure that each idler pulley maintains its structural integrity even under significant radial loads and high-speed rotations typical of modern automated production lines.
Understanding the mechanics of belt-driven systems is fundamental to maximizing equipment longevity. The RABS series functions as a non-power-transmitting guide, facilitating the change in direction of a belt or providing tension to prevent slippage. The internal bearing is the heart of the pulley; our RABS series utilizes precision-ground ball bearings that are permanently lubricated and sealed against dust and moisture—a vital feature for Colombian coal mines and sugar refineries where particulate matter is prevalent. The outer diameter (OD) and bore size (ID) are manufactured to tight tolerances to ensure a perfect fit with standard shafting and belt widths, providing a vibration-free operation that protects the motor and other drive components from premature fatigue. Our commitment to the **EEAT (Experience, Expertise, Authoritativeness, Trustworthiness)** principle means we don’t just provide a part; we provide an engineering solution backed by rigorous testing and a deep understanding of mechanical transmission dynamics.
4. Legal Standards & Industrial Compliance: Navigating the Global and Colombian Regulatory Landscape
Compliance with safety and engineering standards is non-negotiable for industrial procurement in the modern age. For our Colombian partners, adhering to the Norma Técnica Colombiana (NTC), particularly standards related to mechanical transmission and workplace safety (OSHA equivalent in Colombia through Resolution 0312 of 2019), is essential for operational legality. The RABS series is designed to exceed these local requirements while maintaining strict adherence to global benchmarks such as ISO 9001:2015 for quality management and DIN 2211 for pulley geometry. In North America, our components align with ANSI/ASME standards, ensuring that multinational companies operating in Bogota or Medellin can standardize their inventory without technical friction. Furthermore, in the European market, the CE marking principles for machinery safety guide our manufacturing processes, guaranteeing that the materials used are free from hazardous substances and are built to prevent catastrophic failure in the workplace.
Beyond safety, environmental regulations such as RoHS and REACH are increasingly relevant to the heavy-duty pulley industry. Colombia’s Ministry of Environment and Sustainable Development is progressively implementing greener industrial policies, making it imperative for suppliers to provide components that are not only durable but also environmentally responsible. The RABS series uses recyclable steel and high-efficiency bearings that reduce energy loss, directly supporting corporate sustainability goals. In countries like Germany or Japan, energy efficiency standards for industrial drives are even stricter, and the RABS series is engineered to meet these high-efficiency (IE3/IE4 class) system requirements. By choosing our RABS idler pulleys, Colombian enterprises ensure they are protected from regulatory liabilities while benefiting from a product that is recognized by global engineering bodies for its reliability and adherence to technical excellence.
5. customer reviews
-
“The EP-Flanged Idler Pulley RABS series is perfect for our mining operations in Colombia. It keeps our belts aligned and reduces downtime, even in the toughest conditions.” — Juan, Colombia
-
“We use the RABS2050 pulleys in our sugar refinery, and they’ve performed exceptionally well. The corrosion-resistant material is ideal for our coastal environment, and we’ve noticed fewer maintenance issues.” — Carlos, Colombia
-
“These pulleys are a game-changer for our agricultural machinery. The flanged design ensures the belts stay in place, even during the harvest season on our coffee plantations.” — Maria, Colombia
-
“The customer service from Heavy Duty Pulley is top-notch. The quick delivery and high-quality RABS pulleys have made our operations in Medellín run smoother and more efficiently.” — Luis, Colombia
5. The Future of Transmission: Trend Analysis for Heavy-Duty Pulleys (2025-2030)
The heavy-duty pulley sector is currently undergoing a significant technological shift driven by the “Industry 4.0” initiative. In Colombia, we are observing an increasing demand for “Smart Transmission” components that can integrate with IoT (Internet of Things) platforms for predictive maintenance. The future of the RABS series involves the potential integration of vibration and heat sensors within the bearing housing to alert engineers before a failure occurs. This trend is particularly relevant for the remote mining regions of La Guajira, where unscheduled maintenance can result in millions of pesos in lost revenue. Additionally, material science is moving toward lightweight high-strength alloys and advanced composite coatings that provide the same strength as traditional steel but with significantly higher corrosion resistance—a major advantage for the coastal industrial zones of Barranquilla and Cartagena.
Global trends also indicate a move toward “Total System Efficiency” (TSE). As energy costs rise globally and in the Colombian domestic market, the precision of the idler pulley’s rotation becomes a key factor in reducing the overall amperage draw of the drive motor. We are seeing a shift from simple rolling elements to high-performance ceramic hybrid bearings in specialized applications to further reduce friction. Our RABS series stays ahead of these trends by continuously updating its manufacturing processes, utilizing CNC precision grinding and advanced surface hardening techniques like induction hardening. This ensures that as the market evolves toward more automated and energy-conscious systems, our pulleys remain the benchmark for performance, helping our clients reduce their carbon footprint while maximizing their operational throughput.
6. Application Scenarios
1. Belt Tensioning and Guiding in Industrial Conveyor Systems
Flanged idler pulleys are widely used in flat belt conveyor systems where belts need to be routed and kept at proper tension throughout the system. The flanges help keep the belt aligned and prevent it from slipping off the pulley during operation. This is especially important in automated production lines and material handling equipment.
2. Machinery Power Transmission
In various industrial machines, these idler pulleys serve as driven rollers for flat belts, helping to maintain proper belt tension and alignment between driving and driven pulleys. This ensures efficient power transfer and smooth motion between components without the pulley itself transmitting power.
3. Automotive and Engine Accessory Systems
Idler pulleys (including flanged types) are used in automotive engines and accessory drives to manage serpentine belts or timing belts. They assist in maintaining belt tension and guide belt routing around multiple components such as alternators, water pumps, and compressors.
4. HVAC and Fan Drive Systems
In HVAC units and blower systems, flanged idler pulleys guide and tension belts that drive fan wheels or blower motors. They help maintain consistent airflow and reduce slippage or vibration in the belt drive system.
5. Agricultural and Construction Equipment
Although specific to flanged idler pulleys, these parts can be used in agricultural machinery and light construction equipment where flat belts are employed for auxiliary drives or implement power transmission. The flanged design helps keep flat belts properly tracked even under vibration or load variations.
6. Material Handling and Packaging Machinery
In packaging lines or material handling systems that use flat belts for transport and positioning, flanged idler pulleys help guide the belt and keep it stable during high‑speed operation, reducing wear and maintenance.
7. Why Choose Us?
At Heavy Duty Pulley, we stand at the forefront of industrial and agricultural machinery solutions. Our commitment to precision engineering, durable products, and exceptional service makes us the go-to choice for customers worldwide. Here’s why you should choose us:
-
Superior Quality Standards
We utilize premium materials and state-of-the-art manufacturing processes to produce heavy-duty pulleys that are built to last. Our products undergo rigorous quality control to ensure they meet the highest industry standards, ensuring optimal performance and longevity. -
Extensive Product Range
From flanged idler pulleys to sheaves and accessories, we offer an extensive range of heavy-duty pulley systems designed to meet the needs of various industries, including automotive, construction, mining, and agriculture. Whatever your application, we have a reliable, custom solution for you. -
Unmatched Durability
Our pulleys are engineered for the harshest working conditions. With advanced metallurgy and precision engineering, they are designed to handle high loads, extreme temperatures, and intense environments, ensuring continuous, hassle-free operation. -
Seamless Integration & Easy Installation
We ensure that our products integrate perfectly with your existing systems. Easy to install and maintenance-friendly, our pulleys minimize downtime and keep your operations running smoothly. -
Customer-Centric Service
At Heavy Duty Pulley, we go beyond just selling products—we build partnerships. Our team is always available to provide expert advice, technical support, and customized solutions that meet your specific needs, ensuring that you get the most value from our products. -
Global Reach, Local Service
With years of experience and a network of trusted partners across the globe, we provide fast, reliable delivery and local support no matter where you are. We’re committed to ensuring your business operates at peak efficiency, anywhere in the world.
8. Related components.

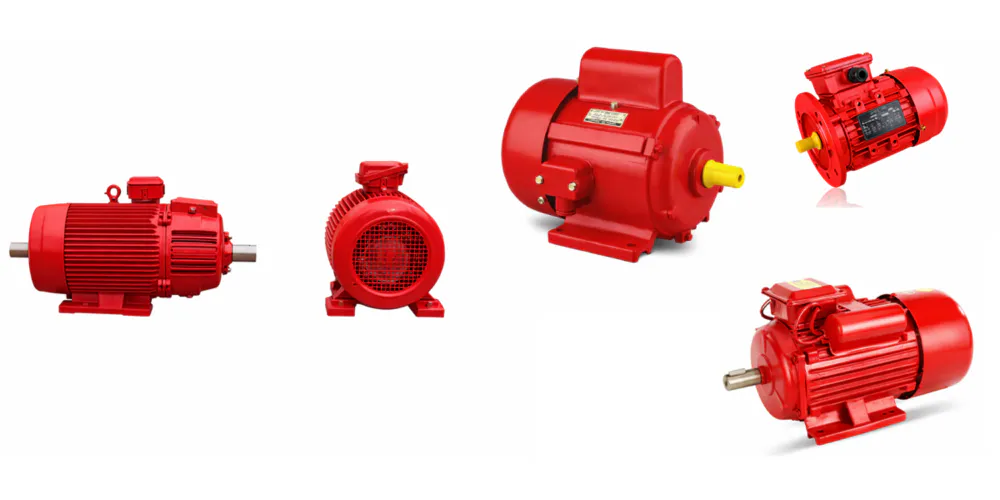

At Heavy Duty Pulley, we don’t just supply high‑performance pulleys — we also offer premium AC motors that perfectly complement your power transmission systems. As part of the HZPT / EVER‑POWER industrial portfolio, our AC motors are engineered for efficiency, reliability, and long‑life performance, making them an ideal match for heavy‑duty belt and pulley systems.
Our motors cover a wide power range with options from compact asynchronous units to high‑power three‑phase induction motors suitable for industrial conveyors, compressors, fans, pumps, and machine drives. Designed with robust cast iron frames, high‑efficiency classes, and protective insulation, they deliver stable operation even under demanding workloads and harsh environments — ensuring your equipment runs smoothly and consistently.
By combining our heavy duty pulleys with matched AC motors, you get a complete, integrated drive solution that maximizes system efficiency, reduces vibration and wear, and cuts maintenance costs. With HZPT’s global certifications and export experience, our motors and pulleys offer proven performance and support for agricultural, manufacturing, and processing industries worldwide.
Choose Heavy Duty Pulley for trusted quality, engineered performance, and turnkey drive solutions that meet your toughest industrial challenges.
Frequently Asked Questions (FAQ)
Q1. How does the EP- Flanged Idler Pulley RABS series ensure the longevity of high-torque drive belts in Colombian mining environments?
A1. The RABS series utilizes a high-precision flanged design that physically prevents lateral belt migration, which is common in high-vibration mining machinery. By maintaining perfect alignment, it eliminates edge wear on the belt, ensuring that your heavy-duty systems operate efficiently without frequent belt replacements.
Q2. Where can I find a reliable supplier in Colombia that offers a cost-effective quote for the RABS2050 heavy-duty idler pulley series?
A2. You can obtain a competitive quote for the RABS series directly through our authorized distribution network in Colombia. We provide transparent pricing and bulk supply options for major industrial hubs like Bogota, Medellin, and Cali, ensuring high-quality replacements are always accessible.
Q3. Which specific material grade is used in the construction of the RABS series to withstand the high humidity of coastal Barranquilla?
A3. Our RABS pulleys are manufactured from premium SPCC or SPHC cold-rolled steel, which is treated with a specialized anti-corrosive zinc or black oxide finish. This specific metallurgical choice ensures that the pulley resists rust and oxidation even in the salty, humid air characteristic of Colombia’s coastal regions.
Q4. What is the standard lead time for a bulk order of flanged idler pulleys for a large-scale sugar refinery project?
A4. For large-scale projects, we typically maintain a robust inventory of standard RABS sizes to ensure rapid dispatch. For custom specifications or exceptionally large volumes, our lead times are among the fastest in the industry, often delivering within 2-4 weeks to your facility in the Valle del Cauca.
Q5. How do I choose the correct bore size and outer diameter for my existing conveyor system when replacing a competitor’s idler?
A5. To ensure a perfect fit, you should measure the shaft diameter (Bore) and the available space for the Outer Diameter (OD). Our RABS series follows standardized metric dimensions (e.g., RABS2040 has a 20mm bore and 40mm OD), making it easy to cross-reference with global brands for a direct, hassle-free replacement.
Q6. Why is the bearing quality in the EP- RABS series considered superior for 24/7 continuous operation in industrial manufacturing plants?
A6. We integrate high-grade, deep-groove ball bearings (6000-series) that are pre-lubricated with high-temperature synthetic grease. These bearings are designed for high-speed rotation and low thermal expansion, allowing them to run continuously for thousands of hours without the need for manual re-greasing or maintenance.
Q7. When should I replace my idler pulley to avoid catastrophic failure and minimize the total cost of ownership of my equipment?
A7. We recommend inspecting pulleys every 2,000 operational hours. If you notice unusual noise, excessive vibration, or visible wear on the flanges, it is time to replace the unit. Proactive replacement with the RABS series prevents belt failure, which is significantly more expensive than the pulley itself.
Q8. What are the key differences between the RABS series and standard non-flanged idlers for agricultural harvesters used in coffee plantations?
A8. Standard idlers often allow the belt to “walk” during uneven terrain operation, whereas the RABS flanged series provides a rigid guide that keeps the belt locked in place. For the rugged slopes of Colombian coffee farms, the flanged RABS series offers the stability required to prevent belt slip during peak harvest seasons.
Q9. How does the RABS series help my company comply with Colombian industrial safety regulations regarding mechanical transmission guarding and worker protection?
A9. By ensuring the belt remains securely on track, the RABS series reduces the risk of belt “snap” and pulley disintegration, which are primary safety hazards. Its smooth finish and robust build align with NTC safety standards, helping your safety officers meet Resolution 0312 compliance during facility audits.
Q10. Which international shipping options are available for Colombian businesses looking to import the RABS series for their regional distribution centers?
A10. We offer flexible shipping terms including FOB, CIF, and DDP to major Colombian ports like Buenaventura and Cartagena. Our logistics team handles the technical documentation and certificates of origin, ensuring a smooth customs process so your inventory stays replenished without administrative delays.
